Autel MaxiSys MS908CV

R68,290.00 EX VAT

As a new member of Autel’s MaxiSys family, the MaxiSys MS908CV is built on the powerful MaxiSys 908 platform and provides a comprehensive diagnostic solution for virtually all commercial vehicles as well as machines made in North America, Europe and Asia. Offering advanced features and extreme ease-of-use, MaxiSys MS908CV is the ideal solution for independent repair shops, owner-operators and various sized fleets seeking a single scan tool for all their professional heavy duty needs.

Available on back-order

Brands:Autel

Description

Tech Specs

Operating SystemAndroid™ 4.0, Ice Cream Sandwich
ProcessorSamsung Exynos Quad-Core Processor 1.4GHz
Memory2GB RAM & 32GB On-board Memory
Display9.7 inch LED capacitive touchscreen with 1024×768 resolution
ConnectivityEthernet: RJ45 Ethernet Connection

WiFi (802.11 a/b/g/n)

USB: 2.0

BT v.2.1 + EDR

SD Card (Support up to 32GB)

HDMI

Camera (rear)Rear-facing, 5.0 Megapixel, AF with Flashlight
SensorsGravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/OutputMicrophone

Dual Speakers

4-Band 3.5 mm stereo/standard headset jack

Power and Battery11000 mAh 3.7 V lithium-polymer battery Charging via 12 V AC/DC power supply
Input Voltage12 V (9-24 V)
Power Consumption6.5 W
Operating Temp-10 to 55°C (14 to 131°F)
Storage Temp-20 to 70°C (-4 to 158°F)
HousingStrong plastic housing with protective rubber boot
Dimensions300 mm (11.81”) x 220 mm (8.66”) x 50 mm (1.97”)
WeightNW: 1.42 kg (3.13 lb.), GW: 8.052 kg (17.75 lb.)
ProtocolsSAE J1939; SAE J1708; Manufacturer customized J1939; Manufacturer customized J1708; KWP; VPW; UDS-CAN; CDL

Comparison

MaxiSys

Elite

MaxiSys

CV

MaxiSys

MS908S Pro

MaxiSys

MS908S

MaxiSys

MS906TS

MaxiSys

MS906BT

MaxiSys

MS906

Function
All Systems DTC Scan
Service Function
Bi-Directional Control
Auto VIN Technology
ECU Coding
ECU Programming
MaxiFix Cloud-Based Info System
Data Manager
Shop Manager
Remote Support
Pre-scan Report & Post-scan ReportNorth America OnlyNorth America OnlyNorth America OnlyNorth America OnlyNorth America Only
Print Feature
Multi-language Support
Coverage
Domestic/Asian/European Coverage(1996-Present)
Hardware
Display Size9.7″9.7″9.7″9.7″8″8″8″
Wireless VCIMaxiFlash EliteMaxiFlash EliteMaxiFlash EliteWireless Diagnostic
Interface
MaxiVCI V100MaxiVCI V100
Battery Life15400 mAh 3.7 V11000 mAh 3.7 V11000 mAh 3.7 V11000 mAh 3.7 V10000 mAh 3.7 V10000 mAh 3.7 V5000 mAh 3.7 V
Memory Storage64GB64GB64GB64GB32GB32GB32GB
Connector Kit
Options
TPMS
Oscilloscope
Inspection Camera
ADAS

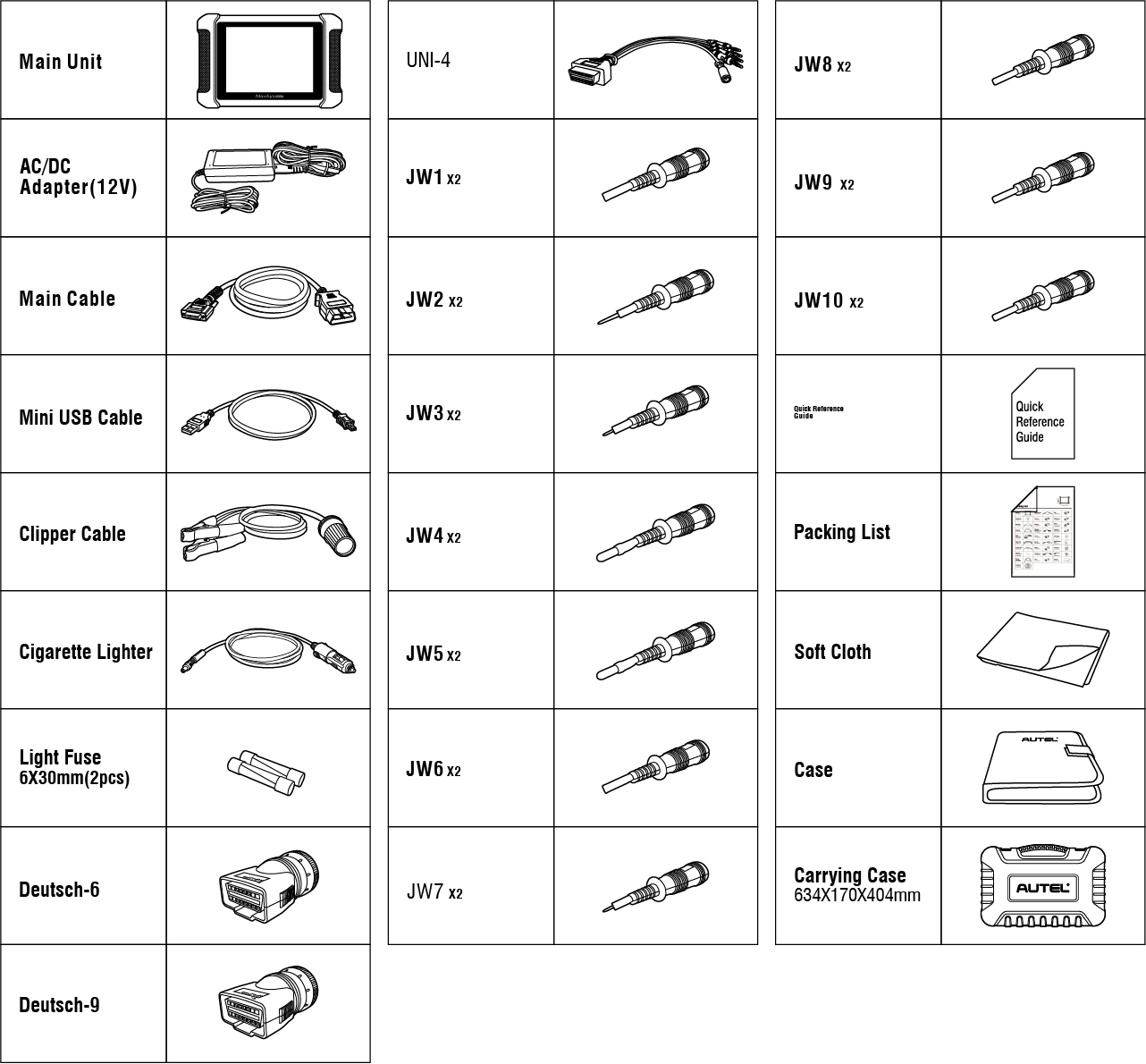

Packing List

PDF

MS908CV user manual v1.0 en
