Autel MaxiBAS BT508

R10,825.00 EX VAT

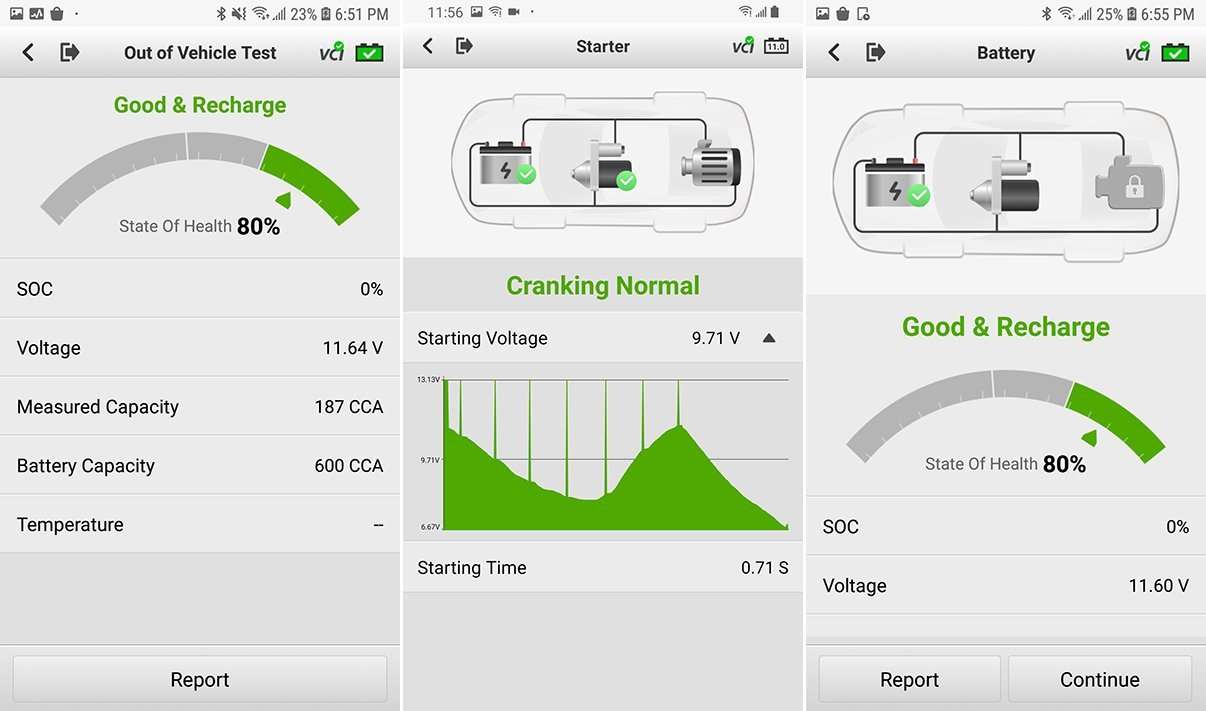

The BT508 is powerful yet, lightweight battery and electrical system tester that uses Adaptive Conductance, an advanced battery analysis method, to produce a more accurate examination of the battery’s cold cranking ability and reserve capacity, vital to determining a battery’s true health. Download the free and easy-to-use mobile app, available for iOS and Android devices, to use with the BT508 to perform testing and display test results. The BT508 package includes a wireless Bluetooth vehicle communication interface enabling battery and electrical component registration.

Brands:Autel

Description

  1. Support in-vehicle and out-of-vehicle testing of passenger vehicle batteries
  2. Test 6- and 12-volt batteries: 100 – 2000 CCA
  3. Test 12- and 24- cranking/charging systems
  4. Test Flooded, AGM, AGM Spiral, EFB and GEL batteries
  5. Compatible with CCA, CA, SAE, EN, IEC, DIN, JIS and MCA
  6. One-touch battery registration
  7. Illustration instruction guides for battery positioning and testing
  8. Read and erase codes of all available systems

Tech Specs

ItemDescription
Connectivityl   USB 2.0, Type C

l   Bluetooth V3.0 BR/EDR+ V4.2 LE Dual-Mode

Input Voltage5 V DC
Working Current< 150 mA at 12 V DC
CCA Range100 to 2000 A
Voltage Range6 to 36 V
Working Temperature-10° to 50° C (14° to 122° F)
Storage Temperature-20° to 60° C (-4° to 140° F)
Dimension (L x W x H)107 mm (4.21“) x 75 mm (2.95”) x 26 mm (1.02”) (clamp cable not included)
Weight320 g (0.7 lb.)

Comparison

BUILT-IN FEATURES

PDF

Autel MaxiBAS BT506 – 508
